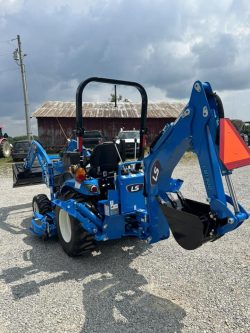

LS MT 225S W/ Loader
tel:6065280218
Advertised Price $21884

The MT2s provides a premium level compact tractor to customers wishing to have a high-performing and a highly featured compact tractor.  The multitude of standard premium features include premium seat, two pedal hydrostatic transmission, flat operator platform, high- capacity loader and three-point hitch.

dumbbell iconLOADER LIFT CAPACITY 1,067 lbs. tractor iconHITCH LIFT 1,896 lbs.
lightning iconENGINE HP 24.7 HP tractor wheel iconPTO HP 19.3 HP



MakeLS
Model225S
Year2024

ENGINE

  • Type: 3Cylinder-IDI
  • Model (Tier 4): 3TNV80F-ZXKLST(YANMAR)
  • Engine HP (Gross): 24.7
  • PTO HP: 19.3
  • Rated Speed (RPM): 2,800
  • Displacement (cu. in.): 77.3
  • Fuel Tank Capacity (gal): 6.79
  • Alternator (V-A): 12-40

DRIVE TRAIN

  • Transmission: HST
  • No. of Speeds: 3 Ranges
  • Brakes: Wet, Multi Disc
  • Steering: Hydrostatic Power Steering

PTO

  • Type: Independent
  • Rear (rpm): 540
  • Mid PTO (option): 2,500

HYDRAULIC SYSTEM

  • Control System: Position
  • Implement pump (gpm): 5.6
  • Steering pump (gpm): 3.7
  • Total flow (gpm): 9.3
  • Category, 3 pt hitch: CAT 1
  • Hitch Lift capacity (lb): 1,896
  • Remote Valves: 1 PAIR (Option)

DIMENSION

  • Overall length, Frame to link, (in.): 111.9
  • Wheelbase (in.): 63.4
  • Overall width with tires, in. (in.): 48.7
  • Height to top of ROPS (in.): 86.4

TIRE SIZE

  • IND (Front/Rear): 23 x 8.5 – 12 / 12 – 16.5
  • Turf (Front/Rear): 22 x 8.5 – 12 / 31 x 15.5 – 15
  • Versa Turf (Front/Rear): 12 x 16.5/23 x 8.5

WEIGHT

  • Total weight without ballast (lbs.): 1,764

Attachments

LL2300 – FRONT END LOADER

  • Bucket (in): 54.3
  • Maximum Lift height (in): 84.4
  • Clearance with Attachment Dump (in): 59.1
  • Reach at Maximum Height (in): 17.9
  • Maximum Dump Angle (deg): 55
  • Maximum Rollback Angle (deg): 40
  • Digging Depth (in): 4.5
  • Overall Height in Carry Position (in): 46
  • Lift Capacity (@ Pivot pin) (lbs): 1,067
  • Breakout Force (@ Pivot pin) (lbs): 2,290
  • Approx. Weight (Loader w/o Bucket) (lbs): TBD
